▶ Compact spots

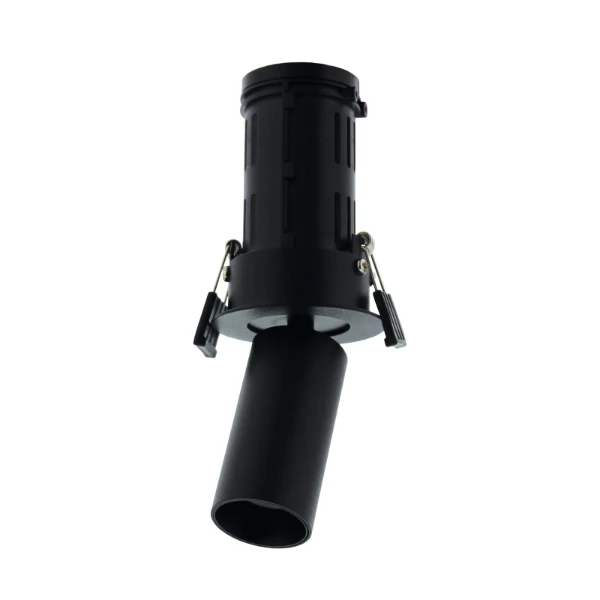

863770 - LCB-SIB-PA-ZW-EWW
Package type: CT á 1 PCE
×
Product specifications : 863770 - LCB-SIB-PA-ZW-EWW
Spot
Mounting method
Built-in
Colour temperature (K)
2700 - 2700
Luminous flux (lm)
0 - 400
Suitable for lamp power (W)
3.1 - 3.1
Max. system power (W)
3.1
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Suitable for ceiling mounting
Yes
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Degree of protection (IP)
IP20
Type of control gear
LED operating device current-controlled
With control gear
No
Housing material
Aluminium
Housing colour
Black
Rated luminous flux according to IEC 62722-2-1 (lm)
400
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Length (mm)
60
Width (mm)
30
Beam angle (°)
36
Height/depth (mm)
89
Outer diameter (mm)
54
Built-in depth (mm)
84
Voltage type
DC
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
(cm)
100
Light distributor
Focal lens
Light outlet
Direct
Built-in height/depth (mm)
88
Built-in diameter (mm)
49 - 50
Number of poles
2
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Accessories
Similar product
Variants
863640 - LCB-SPOT-NW
4000 - 400010 - 320
3.1 - 3.1
3.1
0 - 350
8.8 - 8.8
Rotating and swivelling
IP44
Aluminium
Aluminium
320
Medium beam 21-40°
40
27
50
27
No
Diffuser lens/optic/panel
27
45 - 48
Push-in clamp
E
863641 - LCB-SPOT-EWW
2700 - 270010 - 320
3.1 - 3.1
3.1
0 - 350
8.8 - 8.8
Rotating and swivelling
IP44
Aluminium
Aluminium
320
Medium beam 21-40°
40
27
50
27
No
Diffuser lens/optic/panel
27
45 - 48
Push-in clamp
E
863642 - LCB-SPOT-WW
3000 - 300010 - 320
3.1 - 3.1
3.1
0 - 350
8.8 - 8.8
Rotating and swivelling
IP44
Aluminium
Aluminium
320
Medium beam 21-40°
40
27
50
27
No
Diffuser lens/optic/panel
27
45 - 48
Push-in clamp
E
