863300 - LCB-IB-MI-W-CCT
Package type: CT á 1 PCE
Product specifications : 863300 - LCB-IB-MI-W-CCT
Spot
Mounting method
Built-in
Dimmable
Yes
Colour temperature (K)
2700 - 4000
Colour of light adjustable
Positions
Dimming phase cut-off
Yes
Luminous flux (lm)
0 - 603
Rated luminous flux according to IEC 62722-2-1 (lm)
603
(lm/W)
0 - 100.5
Nominal current (mA)
0 - 130
Nominal voltage (V)
0 - 35
Voltage type
DC
Max. system power (W)
6
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Beam angle
Medium beam 21-40°
Beam angle (°)
36

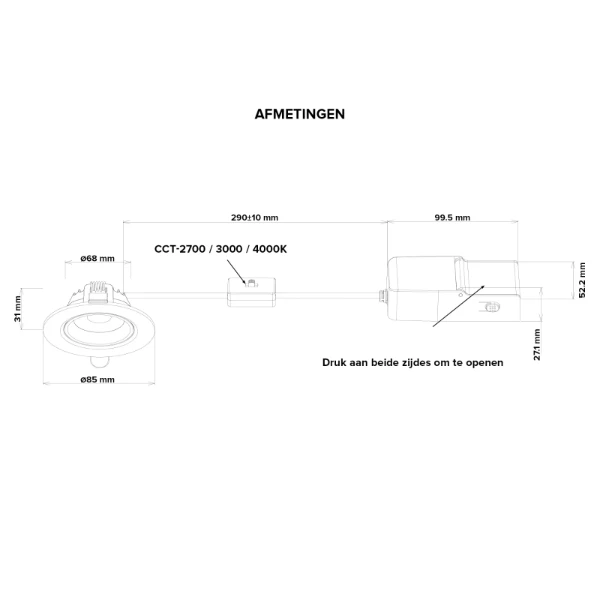

Built-in height (mm)
31 - 31
Length (mm)
85
Width (mm)
85
Height/depth (mm)
31
Outer diameter (mm)
85
Built-in diameter (mm)
68 - 76
Housing colour
White
Degree of protection (IP), front side
IP40
IP20
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
No
Suitable for wall mounting
No
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
6 - 6
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Type of control gear
LED operating device current-controlled
With control gear
Yes
Colour of light
White
Housing material
Aluminium
Reflector
Matt
Light sharing
Symmetric
Protection class
II
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
Suitable for low voltage cable system
No
Surface protection
Lacquered
(cm)
29
Surface brushed
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming Sine Wave Reduction
No
Light distributor
Focal lens
Light outlet
Direct
Rated life time L70/B50 at 25 °C (h)
50000
Rated ambient temperature according to IEC62722-2-1 (°C)
-10 - +40
Power factor
0.85
Number of poles
2
Connectable conductor cross section (mm²)
0.75 - 2.5
Connection type
Push-in clamp
Colour consistency (McAdam ellipse)
SDCM4
Unified Glare Ratio (UGR)
19
Exchangeable control gear
Yes
Constant light output (CLO)
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
160
Max. number of luminaires per miniature circuit breaker C16
210
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
With presence indicator
No
None
Dimming manufacturer's proprietary system
No
None
Dimming 0-10 V
No
IFTTT support available
No
Dimming with push-button
No
Dimming Touch and Dim
No
Compatible with Amazon Alexa
No
Dimming DMX
No
Dimming DALI-2
No
Dimming Zigbee
No
Dimming RF
No
Operation by Bluetooth
No
Compatible with Casambi
No
(lm)
0 - 603
