▶ Blade Terminal

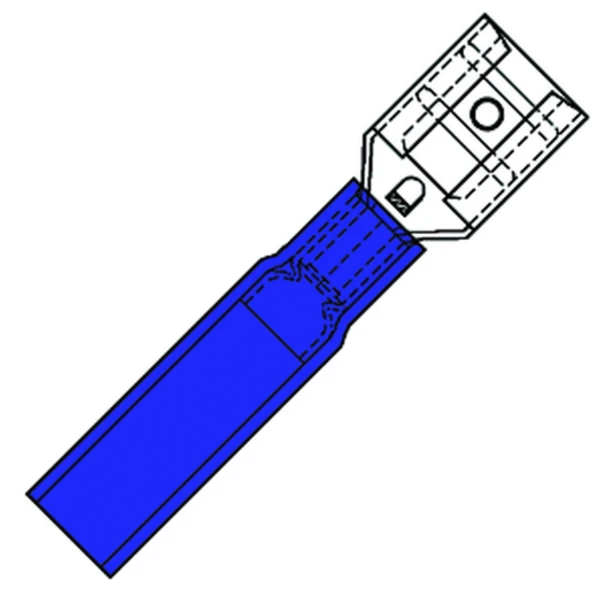

130460 - HSK-SP2507FL

Package type: BX á 50 PCE

Waterdichte föhnvlakstekerhuls 6,3x0,8mm, 1,5-2,5 mm2

Product specifications : 130460 - HSK-SP2507FL

Insulated
Yes
Material insulation
Polyethylene (PE)
Model
Bushing
Nominal cross section (mm²)
1.04 - 2.66
Min. AWG-size
16
Max. AWG-size
14
AWG-range
16 - 14
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Partially isolated
Colour insulation
Blue
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
15
Halogen free
Yes
No
(mm)
34
(mm)
6.3
(mm)
6
Yes
Yes
No
(°C)
105
(V)
300
Watertight
Yes
Reel/roll packaging
No

Variants

130080 - HSK SP1504HA
Plug
0.34 - 1.66
22
16
22 - 16
Round 4 mm
Fully isolated
Red
10
35
4
4
130090 - HSK SP1504HO
Bushing
0.34 - 1.66
22
16
22 - 16
Round 4 mm
Fully isolated
Red
10
33
4
4
130100 - HSK SP1507FL
Bushing
0.34 - 1.66
22
16
22 - 16
Flat 6.3x0.8 mm
Partially isolated
Red
10
34
6.3
5.5
130110 - HSK SP1507H
Plug
0.34 - 1.66
22
16
22 - 16
Flat 6.3x0.8 mm
Partially isolated
Red
10
35
6.3
5.5
130420 - HSK-SP2504HA
Plug
1.04 - 2.66
16
14
16 - 14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130430 - HSK-SP2504HO
Bushing
1.04 - 2.66
16
14
16 - 14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130480 - HSK-SP2507H
Plug
1.04 - 2.66
16
14
16 - 14
Flat 6.3x0.8 mm
Partially isolated
Blue
15
32
6.3
6
130990 - HSK-SP4607H
Plug
2.63 - 6.64
12
10
13 - 9
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
131000 - HSK-SP4607FL
Bushing
2.63 - 6.64
12
10
13 - 9
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
