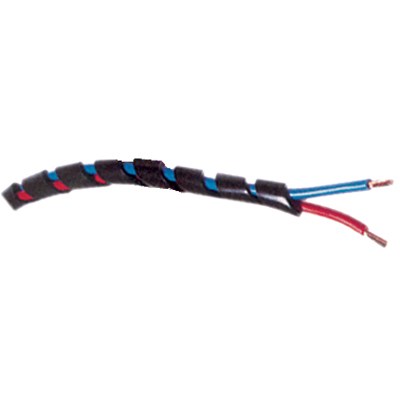

▶ Spiral Hose

470030 - SPIR.4006 ZW

Spiral hose to easily bundle cables. Available in two colours.

Package type: BG á 25 m

Product specifications
Downloads

Product specifications : 470030 - SPIR.4006 ZW

Model

Spiral hose

Nominal diameter (mm)

Material

Plastic

Material quality

Polyethylene

Colour

Black

Transparent

Operation temperature (°C)

1 - 80

Fire resistant properties

According to UL94 V2

Halogen free

Yes

UV resistant

Yes

Wall thickness (mm)

Filament width (mm)

Bundle diameter (mm)

5 - 20

Length (m)

Breakdown voltage (kV)

Variants

470010 - SPIR.1503 ZW

▶Nominal diameter (mm): 1.5
▶Wall thickness (mm): 0.75
▶Filament width (mm): 3
▶Bundle diameter (mm): 1.5 - 7
▶Length (m): 50

470020 - SPIR.1503 TR

▶Nominal diameter (mm): 1.5
▶Colour: Natural colour
▶Transparent: Yes
▶Wall thickness (mm): 0.75
▶Filament width (mm): 3
▶Bundle diameter (mm): 1.5 - 7
▶Length (m): 50

470040 - SPIR.4006 TR

▶Colour: Natural colour
▶Transparent: Yes

470050 - SPIR.7009 ZW

▶Nominal diameter (mm): 7
▶Filament width (mm): 9
▶Bundle diameter (mm): 8 - 30

470060 - SPIR.7009 TR

▶Nominal diameter (mm): 7
▶Colour: Natural colour
▶Transparent: Yes
▶Filament width (mm): 9
▶Bundle diameter (mm): 8 - 30

470070 - SPIR.9012 ZW

▶Nominal diameter (mm): 9
▶Wall thickness (mm): 1.5
▶Filament width (mm): 12
▶Bundle diameter (mm): 10 - 40

470080 - SPIR.9012 TR

▶Nominal diameter (mm): 9
▶Colour: Natural colour
▶Transparent: Yes
▶Wall thickness (mm): 1.5
▶Filament width (mm): 12
▶Bundle diameter (mm): 10 - 40

470090 - SPIR.1619 ZW

▶Nominal diameter (mm): 16
▶Wall thickness (mm): 1.5
▶Filament width (mm): 19
▶Bundle diameter (mm): 20 - 90
▶Length (m): 10

470100 - SPIR.1619 TR

▶Nominal diameter (mm): 16
▶Colour: Natural colour
▶Transparent: Yes
▶Wall thickness (mm): 1.5
▶Filament width (mm): 19
▶Bundle diameter (mm): 20 - 90
▶Length (m): 10
