Ceiling surface

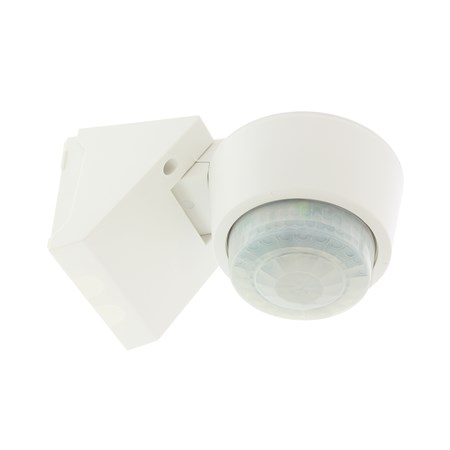

870060 - PIR-HF 240 DUO

Package type: CT á 1 PCE

870060 - PIR-HF 240 DUO

Product specifications : 870060 - PIR-HF 240 DUO

Model
Movement sensor
Passive infrared/ultrasonic (dual)
With DALI interface
No
Constant light control
No
HVAC-control
Yes
Forced switch off
No
Relay
Networkable
No
Suitable for wall mounting
Yes
Optimum mounting height (m)
2.5
Max. reach sideways (m)
16
(VA)
400
Diameter reach on floor (m)
16
(W)
400
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
(W)
2300
Mounting method
Surface mounted (plaster)
Max. mounting height (m)
5
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Min. switch-on time (s)
5
Max. duty cycle (min)
30
Detection angle horizontal (°)
0 - 240
Pivoting range sensor, horizontal (°)
90 - 90
Pivoting range sensor, vertical (°)
40 - 90
Response value luminosity (lx)
5 - 10000
Max. switching power (W)
2300
Temperature (°C)
-20 - +50
Number of switching zones
1
Frequency (Hz)
50 - 60
Scan angle (°)
240
Max. presence range (m²)
800
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
With connection cable
No
Width (mm)
80
Height (mm)
99
Yes
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage (V)
230 - 230
(V)
220 - 240
Yes
(m)
20
(m²)
530
(m²)
800
No
No
Compatible with Casambi
No

Variants

870004 - P300-DUO-PROF
Movement sensor
Passive infrared
Yes
Yes
2.5
16
2.5
16
150
Yes
15
2300
5
White
9010
IP55
AC
5
150
30
Yes
15 - 300
0 - 90
0 - 130
10 - 2000
2300
-20 - +50
78
300
900
80
84
105
150
230 - 230
Yes
20
680
900
2
Yes
870048 - WATCHER-150ZW
Movement sensor
Passive infrared
Yes
Yes
2
6
150
2.5
12
150
No
2
1000
5
Black
9005
IP55
AC
5
119.5
30
Yes
1 - 180
0 - 90
0 - 130
10 - 10000
1000
-20 - +50
78
180
300
73.5
87.5
105
150
220 - 240
Yes
20
120
300
2
Yes
870050 - WATCHER-150
Movement sensor
Passive infrared
Yes
Yes
2
6
150
2
12
100
No
2
1000
5
White
9010
IP55
AC
5
119.5
30
Yes
1 - 180
0 - 90
0 - 130
10 - 10000
1000
-20 - +50
78
180
300
73.5
87.5
105
100
220 - 240
Yes
20
120
300
6
No
870052 - WATCHER-12V
Movement sensor
Passive infrared
Yes
Yes
2
6
100
12
No
1000
5
White
9010
IP65
AC/DC
5
119.5
12
Yes
1 - 180
90 - 90
40 - 90
10 - 10000
1000
-20 - +50
800
180
300
73.5
87.5
105
600
11 - 32
No
20
120
300
6
No
870460 - PLF-IB-PIR-GANG
Movement sensor
Passive infrared
No
No
2.5
6
800
20
Yes
2200
2.5
White
9010
IP55
AC
30
30
1 - 360
5 - 10000
2200
-10 - +45
800
240
200
105
62.5
230 - 230
Yes
40
65
320
6
Yes
870464 - HB-PIR-UNI 15M
Presence detector
Passive infrared
No
No
2.5
4.5
800
9
Yes
2300
15
White
9010
IP55
AC
30
30
5 - 360
10 - 2000
2300
-10 - +40
117
360
320
105
62.5
220 - 240
Yes
20
65
113
Yes
870474 - PLF-OPB-PIR-UNI9
Presence detector
Passive infrared
Yes
Yes
2.5
4.5
800
9
Yes
3
White
9010
IP55
AC
30
30
5 - 360
10 - 2000
2300
-10 - +40
360
65
105
48
220 - 240
Yes
12
113
Yes
870476 - PLF-OPB-PIR-UNI9-ZW
Presence detector
Passive infrared
Yes
Yes
2.5
5
800
10
Yes
3
Black
9005
IP55
AC
60 - 360
10 - 2000
2300
-20 - +45
360
65
105
48
220 - 240
Yes
12
Yes
870478 - OB-PIR-ECO-W
Presence detector
Passive infrared
Yes
2.5
600
Yes
5
White
9016
IP55
AC
360
154
111.7
39.9
220 - 240
Yes
