▶ Fully insulated Round Connector Sleeve
156160 - IS 1504 HO-NY
Package type: BX á 100 PCE
Product specifications : 156160 - IS 1504 HO-NY
Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16

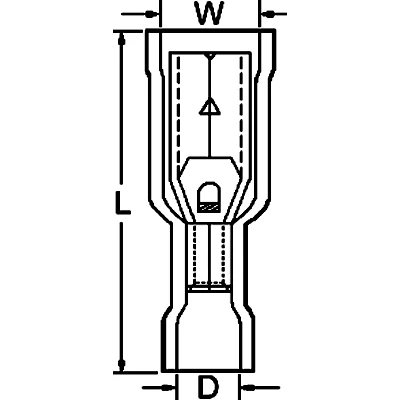

Plug dimensions
Round 4 mm
Insulation
Fully isolated
Colour insulation
Red
Material insulation
Polyamide (PA)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No
(mm)
24
(mm)
4
(mm)
3.6
Yes
Yes
No
(°C)
105
(V)
600
Reel/roll packaging
No
Accessories
