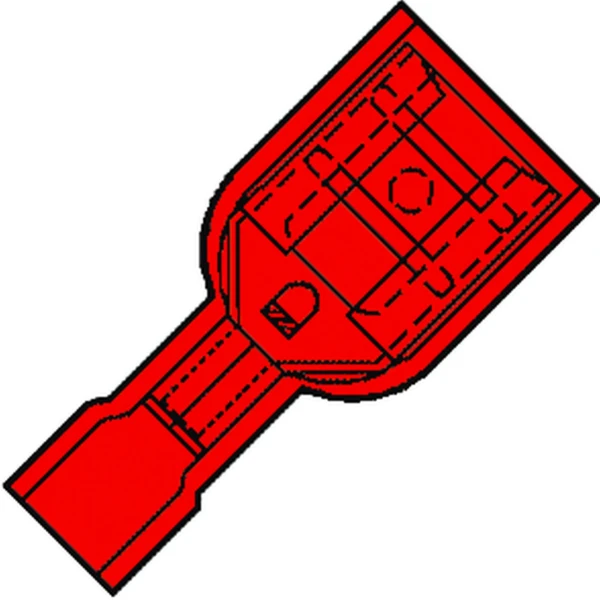

▶ Fully Insulated Blade Terminal Sleeve

156140 - IS 1507 FL-NY

Package type: BX á 100 PCE

156140 - IS 1507 FL-NY

Product specifications : 156140 - IS 1507 FL-NY

Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Fully isolated
Colour insulation
Red
Material insulation
Polyamide (PA)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No
(mm)
21.5
(mm)
6.3
(mm)
3.6
Yes
Yes
No
(°C)
105
(V)
600
Reel/roll packaging
No

Variants

156100 - IS 0503 FL5-NY
0.34 - 1.66
22
16
Flat 2.8x0.5 mm
Red
10
19
2.8
3.6
156110 - IS 0503 FL8-NY
0.34 - 1.66
22
16
Flat 2.8x0.8 mm
Red
10
19
2.8
3.6
156120 - IS 1504 FL5-NY
0.34 - 1.66
22
16
Flat 4.8x0.5 mm
Red
10
19.5
4.8
3.6
156130 - IS 1504 FL8-NY
0.34 - 1.66
22
16
Flat 4.8x0.8 mm
Red
10
19.5
4.8
3.6
156220 - IS 2504 FL5-NY
1.04 - 2.66
16
14
Flat 4.8x0.5 mm
Blue
15
20
2.8
4.3
156230 - IS 2504 FL8-NY
1.04 - 2.66
16
14
Flat 4.8x0.8 mm
Blue
15
20
2.8
4.3
156240 - IS 2507 FL8-NY
1.04 - 2.66
16
14
Flat 6.3x0.8 mm
Blue
15
22
6.3
4.3
156340 - IS 4607 FL8-NY
2.63 - 6.64
12
10
Flat 6.3x0.8 mm
Yellow
24
26
6.3
5.7
