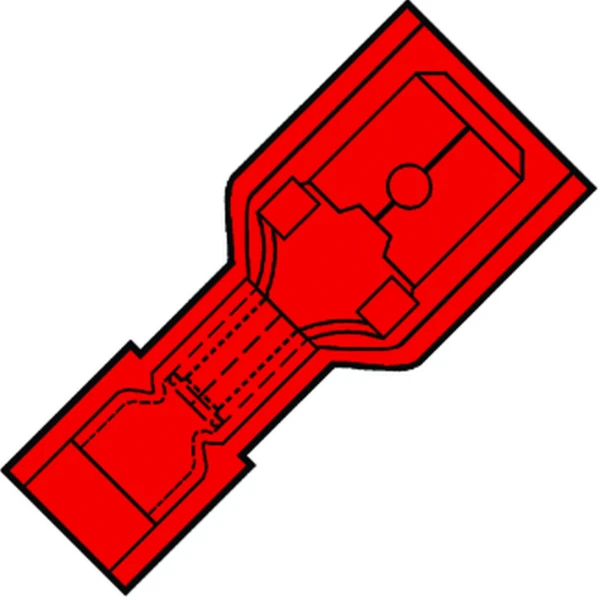

Fully Insulated Blade Terminal Sleeve

156135 - IS-1507-H-NY

Package type: BX á 100 PCE

156135 - IS-1507-H-NY

Product specifications : 156135 - IS-1507-H-NY

Shape
Blade terminal
Model
Plug
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Fully isolated
Colour insulation
Red
Material insulation
Polyamide (PA)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No

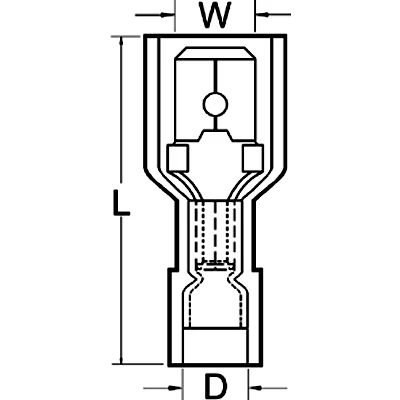

(mm)
24
(mm)
6.3
(mm)
4
Yes
Yes
No
(°C)
105
(V)
600
Reel/roll packaging
No

Variants

156235 - IS-2507-H-NY
1.04 - 2.66
16
14
Blue
15
6.35
5
