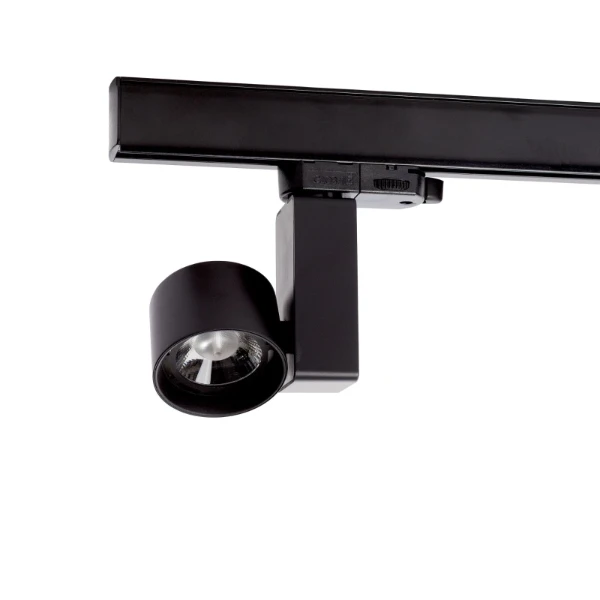

▶ LED Track lights
868095 - LM-BTSP-7W-DTW
Package type: CT á 1 PCE
×
Product specifications : 868095 - LM-BTSP-7W-DTW
Colour temperature (K)
1800 - 3000
Suitable for lamp power (W)
6.9 - 6.9
Max. system power (W)
6.9
Nominal voltage (V)
230 - 230
Suitable for light-track mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Degree of protection (IP)
IP20
Type of control gear
LED operating device current-controlled
With control gear
Yes
Housing material
Aluminium
Housing colour
Black
Rated luminous flux according to IEC 62722-2-1 (lm)
650
Light sharing
Symmetric
Beam angle
Narrow beam 11 - 20°
Length (mm)
60
Width (mm)
94
Beam angle (°)
15
Height/depth (mm)
106
(mm)
44
Outer diameter (mm)
44
Voltage type
AC
Colour of light
Multi-coloured
Colour rendering index CRI
90-100
Optics
Lens
Yes
Dimming phase cut-off
Yes
Light distributor
Focal lens
Light outlet
Direct
Number of poles
3
Emergency power supply integrated
No
Dimming DALI-2
No
With mounting bracket
No
Energy efficiency class of the light source according to EU regulation 2019/2015
E
