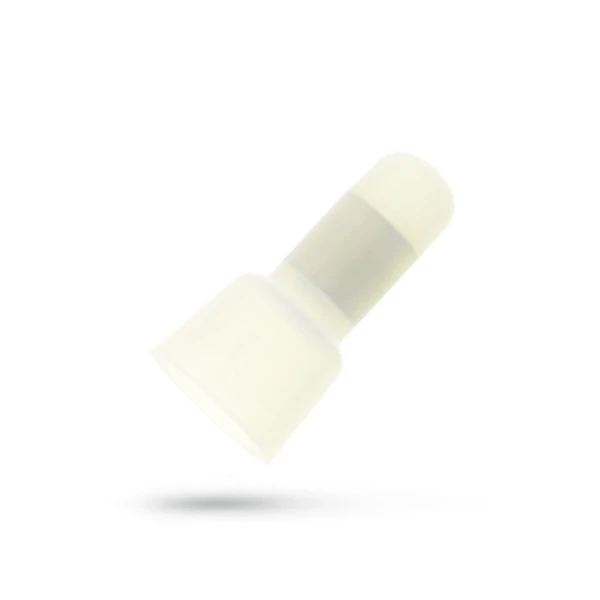

Terminals Insulated End Connector

101322 - A 1210T-R

Package type: BX á 50 PCE

101322 - A 1210T-R

Product specifications : 101322 - A 1210T-R

Nominal cross section (mm²)
4 - 6
Min. AWG-size
12
Max. AWG-size
10
Model
UL model
Sleeve form
Long
Suitable for solid conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for round conductors
Yes
Material
Copper
Surface protection
Tinned
Insulation
Polyamide (PA)
Voltage level
Up to 600 V
Type of connection
End connector
For pull protected connections
No
Nominal current (A)
50
Max. temperature (°C)
105
(mm)
21
(mm)
6.8
(mm)
10
(mm)
4
No

Variants

101325 - A 2218 T
0.75 - 1.5
18
16
Short
18
15.2
7
8
2.3
101326 - A 1614 T
1.5 - 2.5
16
14
Short
30
15.2
7
8.3
3
101327 - A 2506 T
4 - 6
12
10
Short
50
17.8
7.5
11.2
4
101328 - A 008 T
6 - 10
10
8
Short
70
22
8
14.2
5
