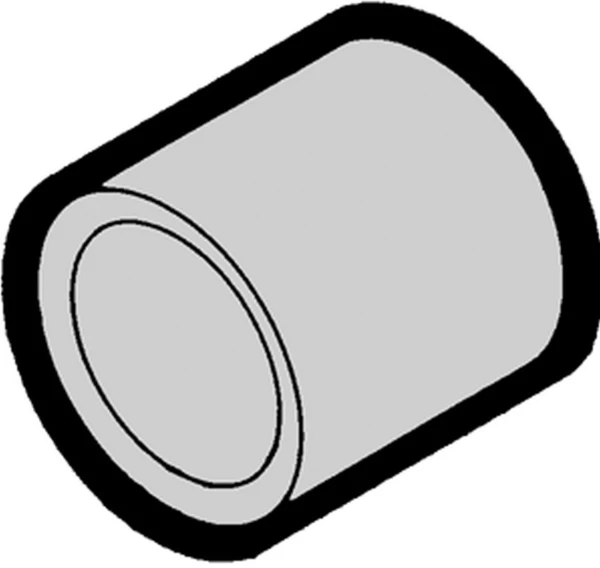

220016 - P-300
Package type: BG á 5 PCE
Product specifications : 220016 - P-300
Nominal cross section (mm²)
300 - 300
Min. AWG-size
750 kcmil
Max. AWG-size
750 kcmil
Model
UL model
Sleeve form
Short
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
None
Voltage level
Up to 600 V
Type of connection
Parallel connector
Number of branches
0
For pull protected connections
No
Oil stop/centre bar
No
Nominal current (A)
620
(mm)
37
(mm)
28
(mm)
37
No
