▶ Terminals

220300 - V 864

Package type: BX á 100 PCE

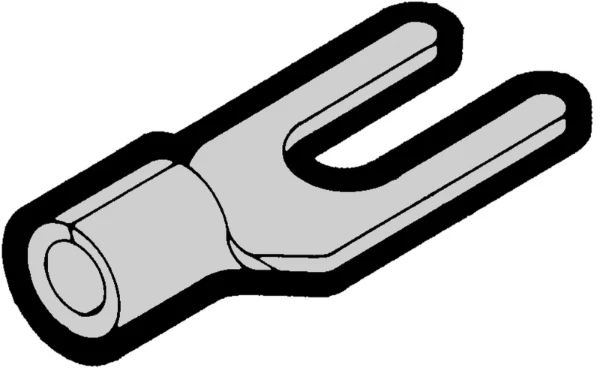

Ongeïsol. vorkkabelschoen 2,5 mm2, boutgat M5

Product specifications : 220300 - V 864

Nominal cross section (mm²)
2.5
Bolt dimension (metric)
5
Connecting angle
180° (horizontal)
Flange shape
Fork shape
Slender flange model
No
Insulated
No
With sight-hole
Yes
Material
Copper
Surface protection
Tinned
AWG size
14
(mm)
2.3
(mm)
5.4
(mm)
8
(mm)
17.2
(V)
600
(A)
30

Variants

100010 - SP 0503 FL5
Bushing
Flat 2.8x0.5 mm
Brass
19
2.8
4
0.5
105
100020 - SP 0503 FL8
Bushing
Flat 2.8x0.8 mm
Brass
19
2.8
4
0.8
105
100022 - SP 0503 FL5-FB
Bushing
Flat 2.8x0.5 mm
Bronze
19.5
2.8
3.7
0.5
75
100023 - SP 0503 FL8-FB
Bushing
Flat 2.8x0.8 mm
Bronze
19.5
2.8
3.7
0.8
75
100030 - SP 0503 H
Plug
Flat 2.8x0.8 mm
Brass
17.7
2.8
4
75
100040 - SP 1504 FL5
Bushing
Flat 4.8x0.5 mm
Brass
19
4.8
4
105
100050 - SP 1504 FL8
Bushing
Flat 4.8x0.8 mm
Brass
19
4.8
4
105
100053 - SP 1504 FL8-FB
Bushing
Flat 4.8x0.8 mm
Bronze
21
2.8
3.7
75
100060 - SP 1504 H-5
Plug
Flat 4.8x0.5 mm
Brass
20
4.8
4
75
100070 - SP 1504 H-8
Plug
Flat 4.8x0.8 mm
Brass
20
4.8
4
105
