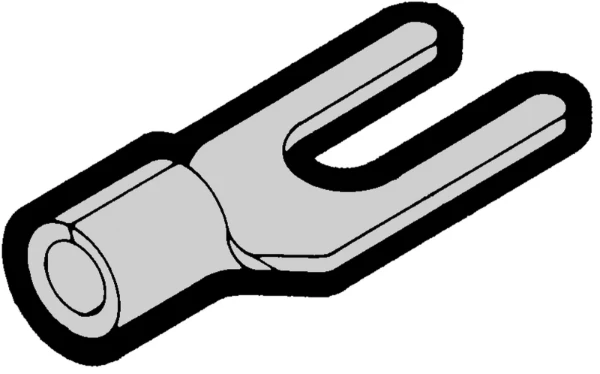

Tubular cable lug for copper conductors

220270 - V 861

Package type: BX á 100 PCE

220270 - V 861

Product specifications : 220270 - V 861

Nominal cross section (mm²)
1.5
Bolt dimension (metric)
4
Connecting angle
180° (horizontal)
Flange shape
Fork shape
Slender flange model
No
Insulated
No
With sight-hole
Yes
Conductor category
Several
Material
Copper
Surface protection
Tinned
Number of mounting holes
1
AWG size
16
(mm)
1.7
(mm)
4
(mm)
6.4
(mm)
16
(V)
600
(A)
18
