Blue

KLEMKO

460196 - FP4-BL-3.2

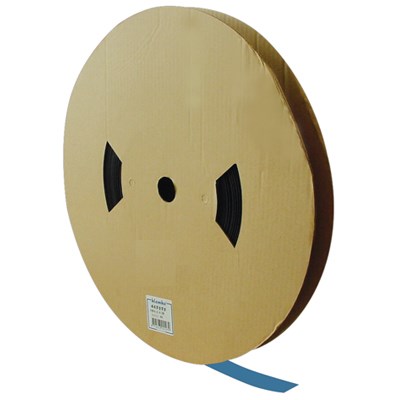

Klemko Heat-Shrink Tube on a reel is made out of chemical crosslinked Polyolefin. This Heat-Shrink Tube will barely shrink back in length when heated. To get an optimal result after shrinking it is sensible to choose the Heat-Shrink Tube that shrinks back about 50%. Therefore the wall thickness is thick enough to get high mechanical and electrical characteristics. This Heat-Shrink Tube has no glue layer and will shrink back fast when you use the right set of crimping tools.

Package type: RL á 200 m

460196 - FP4-BL-3.2

Product specifications : 460196 - FP4-BL-3.2

Model
Thin-walled
Shrink rate
2:1
Inner diameter before heat-shrink (mm)
3.2
Inner diameter after heat-shrink (mm)
1.6
Nominal diameter inch
1/8 inch
Wall thickness after shrinking (mm)
0.51
Length (m)
200
Operation temperature (°C)
-55 - +135
Colour
Blue
Material
Polyolefin (PO-X)
Halogen free
Yes
With inner glue
No
Printable
No
UL approval
Yes
(°C)
100
Breakdown voltage (kV)
17

Variants

460190 - FP1-BL-1.2
1.2
0.6
3/64 inch
0.41
200
460192 - FP2-BL-1.6
1.6
0.8
1/16 inch
0.43
200
460194 - FP3-BL-2.4
2.4
1.2
3/32 inch
0.51
200
460198 - FP5-BL-4.8
4.8
2.4
3/16 inch
0.51
200
460200 - FP6-BL-6.4
6.4
3.2
1/4 inch
0.65
460202 - FP7-BL-9.5
9.5
4.7
3/8 inch
0.65
460204 - FP8-BL-12.7
12.7
6.4
1/2 inch
0.65
460206 - FP9-BL-19.1
19.1
9.5
3/4 inch
0.77
50
460208 - FP10-BL-25.4
25.4
12.7
1 inch
0.89
50
