Connection techn.

▶ Ring Terminal

156460 - SP 2585 R- NY

Package type: BX á 100 PCE

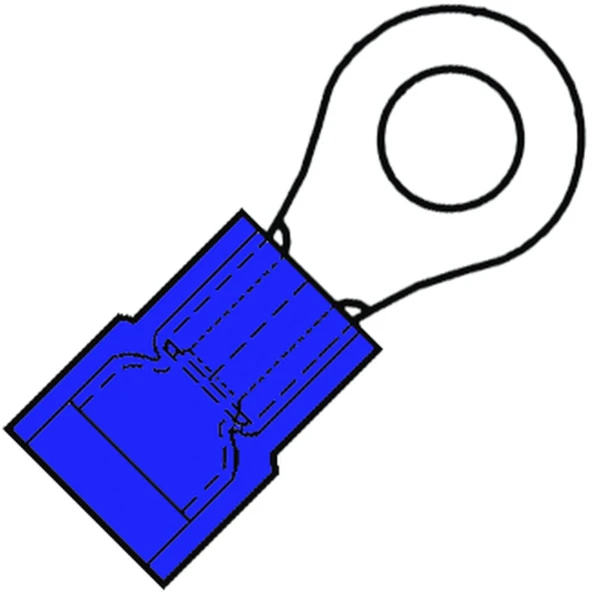

Geïsol. ringkabelschoen SuperPidg M8, 1,5-2,5 mm2, Nylon

Product specifications : 156460 - SP 2585 R- NY

Insulated
Yes
PA
Bolt dimension (metric)
8
Flange shape
Ring shape
According to DIN
No
Insulation
Polyamide (PA)
Colour insulation
Blue
Nominal cross section (mm²)
1.04 - 2.63
Reel/roll packaging
No
Sleeve form
Short
Colour
Blue
AWG-range
17 - 14
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
105
For pull protected connections
Yes
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
30
Stud size (imperial)
Other
Halogen free
Yes
Total length (mm)
28
(mm)
4.5
(mm)
12
(mm)
28
Amperage (A)
27
(V)
600
Watertight
No
Temperature (°C)
105
Yes
Yes
No
Packaging
Bag

Variants

151200 - A 1530 R- NY
3
Red
0.34 - 1.65
Red
22 - 16
19
17.5
4.1
15
17.5
19
Yes
151210 - A 1532 R- NY
3.5
Red
0.34 - 1.65
Red
22 - 16
19
20.4
4.1
6.6
20.4
19
No
151220 - A 1543 R- NY
4
Red
0.34 - 1.65
Red
22 - 16
19
21.8
4.1
8
21.8
19
No
151230 - A 1553 R- NY
5
Red
0.34 - 1.65
Red
22 - 16
19
21.8
4.1
8
21.8
19
No
151240 - A 1565 R- NY
6
Red
0.34 - 1.65
Red
22 - 16
19
27.5
4.1
11.6
27.5
19
No
151250 - A 1585 R- NY
8
Red
0.34 - 1.65
Red
22 - 16
19
27.5
4.1
11.6
27.5
19
No
151260 - A 1510 R-NY
10
Red
0.34 - 1.65
Red
22 - 16
19
31.5
4.1
13.7
31.5
19
No
152200 - A 2530 R- NY
3
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
152210 - A 2532 R- NY
3.5
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
152220 - A 2543 R- NY
4
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
