▶ Fork terminal

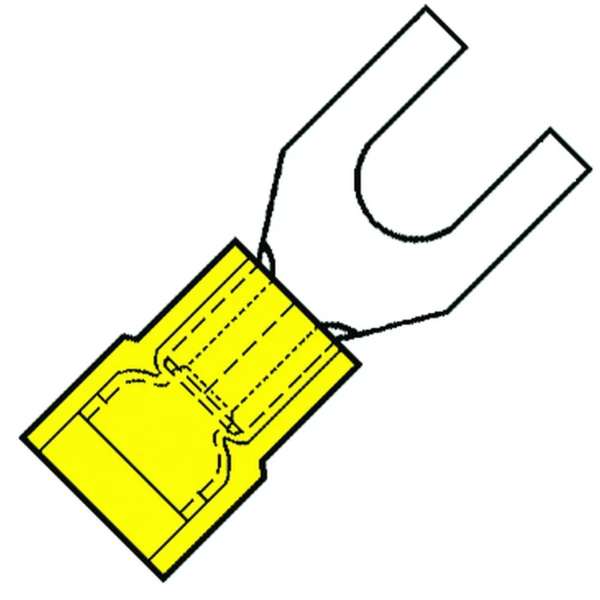

156580 - SP 4660 GS- NY

Package type: BX á 100 PCE

Geïsol. vorkkabelschoen M6, 4,0-6,0 mm2, Nylon

Product specifications : 156580 - SP 4660 GS- NY

Insulated
Yes
PA
Bolt dimension (metric)
6
Flange shape
Fork shape
According to DIN
No
Insulation
Polyamide (PA)
Colour insulation
Yellow
Nominal cross section (mm²)
2.63 - 6.64
Reel/roll packaging
No
Sleeve form
Short
Colour
Yellow
AWG-range
14 - 10
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
105
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
50
Stud size (imperial)
Other
Halogen free
Yes
Total length (mm)
30.3
(mm)
6.6
(mm)
12
(mm)
30.3
Amperage (A)
48
(V)
600
Watertight
No
Temperature (°C)
105
Yes
Yes
No

Variants

151300 - A 1530 GS-NY*
3
Red
0.34 - 1.65
Red
22 - 16
Yes
19
22
4.1
5.7
22
19
151310 - A 1532 GS-NY*
3.5
Red
0.34 - 1.65
Red
22 - 16
Yes
19
22
4.1
6.2
22
19
151320 - A 1540 GS6.4-NY
4
Red
0.34 - 1.65
Red
22 - 16
Yes
19
22
4.1
6.4
22
19
151330 - A 1540 GS-NY*
4
Red
0.34 - 1.65
Red
22 - 16
Yes
19
22
4.1
7.2
22
19
151340 - A 1550 GS-NY
5
Red
0.34 - 1.65
Red
22 - 16
Yes
19
22
4.1
8
22
19
151350 - A 1560 GS-NY
6
Red
0.34 - 1.65
Red
22 - 16
Yes
19
23
4.1
10.7
23
19
152232 - A 2540 GS8,0-NY
4
Blue
1.04 - 2.63
Blue
17 - 14
No
30
22
4.5
7.9
22
27
152300 - A 2530 GS- NY
3
Blue
1.04 - 2.63
Blue
17 - 14
Yes
30
22.5
4.5
5.7
22.5
27
152310 - A 2532 GS- NY
3.5
Blue
1.04 - 2.63
Blue
17 - 14
Yes
30
22.5
4.5
6.2
22.5
27
152320 - A 2540 GS6.4- NY
4
Blue
1.04 - 2.63
Blue
17 - 14
Yes
30
22.5
6.4
22.5
