Connection techn.

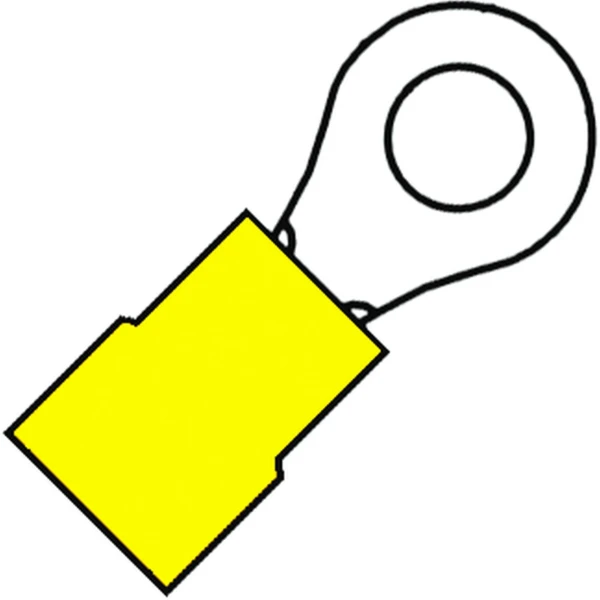

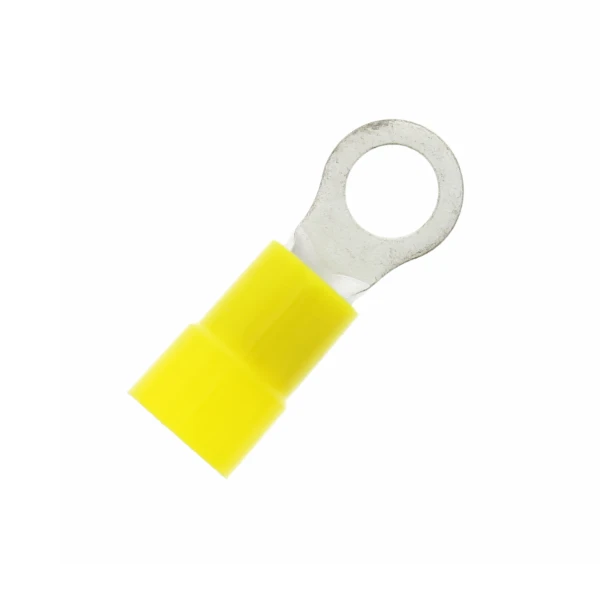

▶ Ring Terminal

157595 - A 2510 R-NY

Package type: BX á 100 PCE

157595 - A 2510 R-NY

Product specifications : 157595 - A 2510 R-NY

Insulated
Yes
PA
Bolt dimension (metric)
10
Flange shape
Ring shape
According to DIN
No
Insulation
Polyamide (PA)
Colour insulation
Yellow
Nominal cross section (mm²)
25 - 25
Reel/roll packaging
No
Sleeve form
Short
Colour
Yellow
AWG-range
4 - 4
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
105
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
125
Stud size (imperial)
Other
Halogen free
Yes
Total length (mm)
33.7
(mm)
7.7
(mm)
16.5
(mm)
33.7
Amperage (A)
48
(V)
600
Watertight
No
Temperature (°C)
105
No
No
No

Variants

151200 - A 1530 R- NY
3
Red
0.34 - 1.65
Red
22 - 16
19
17.5
4.1
15
17.5
19
Yes
151210 - A 1532 R- NY
3.5
Red
0.34 - 1.65
Red
22 - 16
19
20.4
4.1
6.6
20.4
19
No
151220 - A 1543 R- NY
4
Red
0.34 - 1.65
Red
22 - 16
19
21.8
4.1
8
21.8
19
No
151230 - A 1553 R- NY
5
Red
0.34 - 1.65
Red
22 - 16
19
21.8
4.1
8
21.8
19
No
151240 - A 1565 R- NY
6
Red
0.34 - 1.65
Red
22 - 16
19
27.5
4.1
11.6
27.5
19
No
151250 - A 1585 R- NY
8
Red
0.34 - 1.65
Red
22 - 16
19
27.5
4.1
11.6
27.5
19
No
151260 - A 1510 R-NY
10
Red
0.34 - 1.65
Red
22 - 16
19
31.5
4.1
13.7
31.5
19
No
152200 - A 2530 R- NY
3
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
152210 - A 2532 R- NY
3.5
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
152220 - A 2543 R- NY
4
Blue
1.04 - 2.63
Blue
17 - 14
30
23
4.5
8.5
23
27
No
