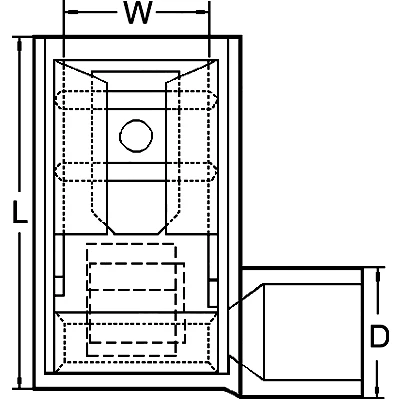

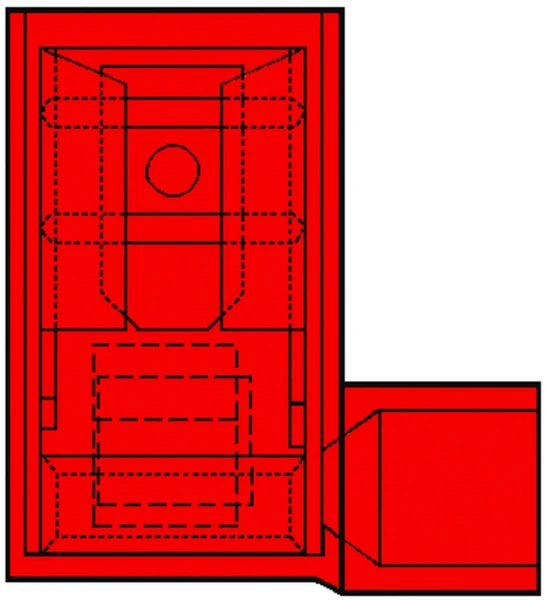

▶ Fully Insulated Blade Terminal Sleeve (angled short)
156145 - IS 1507 FLB-NY
Package type: BX á 100 PCE
Product specifications : 156145 - IS 1507 FLB-NY
Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Fully isolated
Colour insulation
Red
Material insulation
Polyamide (PA)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No
(mm)
16
(mm)
6.3
(mm)
4.3
No
Yes
No
(°C)
105
(V)
300
Reel/roll packaging
No
Right-angled
Yes
Yes
