Black

KLEMKO

946260 - PLF103TB 24/8

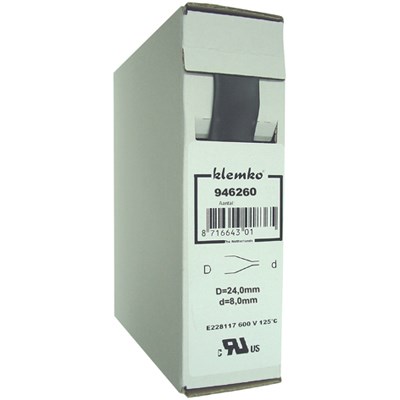

Klemko Heat-Shrink Tube in Tubing is made of chemical vernette Polyolefin. This Heat-Shrink Tube will barely Shrink back in length. to get an optimal strong result na Shrinken is it sensible to choose the Shirnk Tube that the Heat-Shrink Tube Shrink back about 50%. therefore, the wall thickness is thick enough to get high mechanical and electrical characteristics. this Heat-Shrink Tube has no glue layer and will Shrink back fast when you use the right set of Shrink tools.

Package type: CT á 2,5 m

946260 - PLF103TB 24/8

Product specifications : 946260 - PLF103TB 24/8

Model
Thick-walled
Shrink rate
3:1
Inner diameter before heat-shrink (mm)
24
Inner diameter after heat-shrink (mm)
8
Wall thickness after shrinking (mm)
1
Length (m)
2.5
Operation temperature (°C)
-55 - +135
Colour
Black
Material
Polyolefin (PO-X)
Halogen free
Yes
With inner glue
No
Printable
No
UL approval
Yes
(°C)
100
Breakdown voltage (kV)
25
Self-extinguishing
Yes

Variants

946250 - PLF103TB 3/1
3
1
0.55
9
946252 - PLF103TB 6/2
6
2
0.65
6
946254 - PLF103TB 9/3
9
3
0.75
5
946256 - PLF103TB 12/4
12
4
0.75
4
946258 - PLF103TB 18/6
18
6
0.75
4
