156350 - IS 4605 HA-NY

Package type: BX á 100 PCE

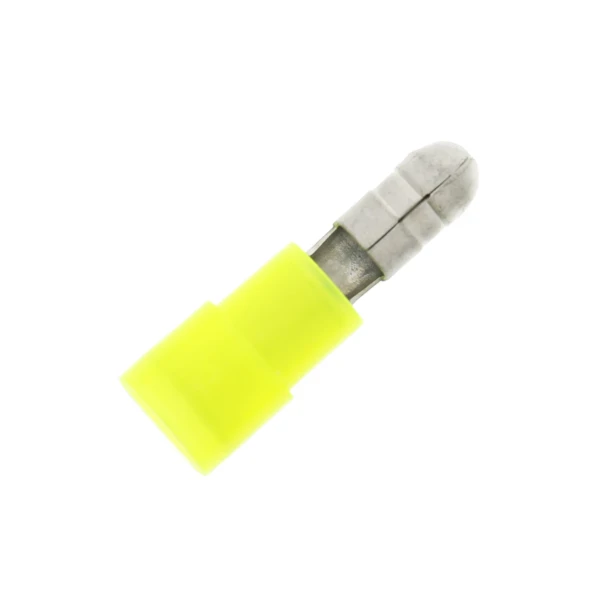

Vol. Geïsol. rondsteker M5, 4,0-6,0 mm2, Nylon

Product specifications : 156350 - IS 4605 HA-NY

Material insulation
Polyamide (PA)
Model
Plug
Nominal cross section (mm²)
2.63 - 6.64
Min. AWG-size
12
Max. AWG-size
10
Plug dimensions
Round 5 mm
Insulation
Fully isolated
Colour insulation
Yellow
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
24
Halogen free
Yes
No
Transparent
No
(mm)
27.5
(mm)
5
(mm)
5.7
Yes
Yes
No
(°C)
105
(V)
600
Reel/roll packaging
No

Variants

100010 - SP 0503 FL5
Bushing
Flat 2.8x0.5 mm
Brass
19
2.8
4
0.5
105
100020 - SP 0503 FL8
Bushing
Flat 2.8x0.8 mm
Brass
19
2.8
4
0.8
105
100022 - SP 0503 FL5-FB
Bushing
Flat 2.8x0.5 mm
Bronze
19.5
2.8
3.7
0.5
75
100023 - SP 0503 FL8-FB
Bushing
Flat 2.8x0.8 mm
Bronze
19.5
2.8
3.7
0.8
75
100030 - SP 0503 H
Plug
Flat 2.8x0.8 mm
Brass
17.7
2.8
4
75
100040 - SP 1504 FL5
Bushing
Flat 4.8x0.5 mm
Brass
19
4.8
4
105
100050 - SP 1504 FL8
Bushing
Flat 4.8x0.8 mm
Brass
19
4.8
4
105
100053 - SP 1504 FL8-FB
Bushing
Flat 4.8x0.8 mm
Bronze
21
2.8
3.7
75
100060 - SP 1504 H-5
Plug
Flat 4.8x0.5 mm
Brass
20
4.8
4
75
100070 - SP 1504 H-8
Plug
Flat 4.8x0.8 mm
Brass
20
4.8
4
105
