▶ Terminals

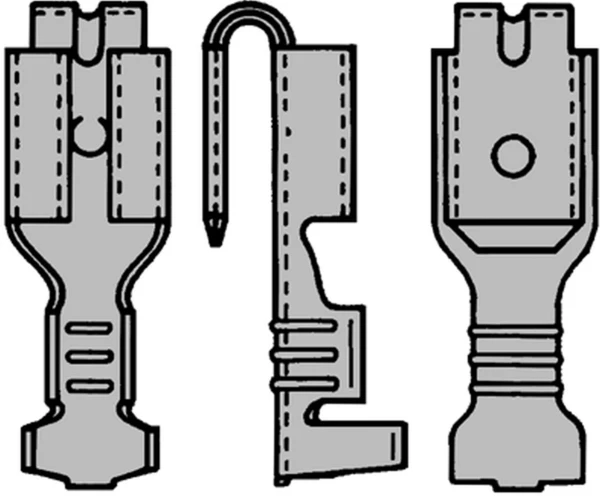

210240 - B1507 FLH

Package type: BX á 100 PCE

F-krimp Ongeïsol. vlakstekerhuls met tab 6,3x0,8mm, 0,5-1,5mm2

Product specifications : 210240 - B1507 FLH

Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Not isolated
With tap spreader
Yes
Material
Brass
Surface protection
Tinned
No
(mm)
19.2
(mm)
8
7.4
No
No
No
(°C)
120
Reel/roll packaging
No

Variants

100010 - SP 0503 FL5
Bushing
Flat 2.8x0.5 mm
Brass
19
2.8
4
0.5
105
100020 - SP 0503 FL8
Bushing
Flat 2.8x0.8 mm
Brass
19
2.8
4
0.8
105
100022 - SP 0503 FL5-FB
Bushing
Flat 2.8x0.5 mm
Bronze
19.5
2.8
3.7
0.5
75
100023 - SP 0503 FL8-FB
Bushing
Flat 2.8x0.8 mm
Bronze
19.5
2.8
3.7
0.8
75
100030 - SP 0503 H
Plug
Flat 2.8x0.8 mm
Brass
17.7
2.8
4
75
100040 - SP 1504 FL5
Bushing
Flat 4.8x0.5 mm
Brass
19
4.8
4
105
100050 - SP 1504 FL8
Bushing
Flat 4.8x0.8 mm
Brass
19
4.8
4
105
100053 - SP 1504 FL8-FB
Bushing
Flat 4.8x0.8 mm
Bronze
21
2.8
3.7
75
100060 - SP 1504 H-5
Plug
Flat 4.8x0.5 mm
Brass
20
4.8
4
75
100070 - SP 1504 H-8
Plug
Flat 4.8x0.8 mm
Brass
20
4.8
4
105
