▶ Terminals

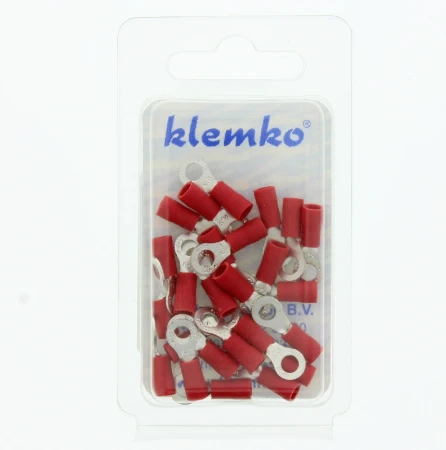

170270 - A 1543 R
Package type: BME á 25 PCE
Product specifications : 170270 - A 1543 R
Polyvinyl chloride (PVC)
Bolt dimension (metric)
4
Flange shape
Ring shape
Insulation
Polyvinyl chloride (PVC)
Insulated
Yes
Colour insulation
Red
Nominal cross section (mm²)
0.34 - 1.65
Reel/roll packaging
No
Sleeve form
Short
Colour
Red
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
105
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
19
Stud size (imperial)
Other
Halogen free
No
Total length (mm)
21.5
(mm)
3.4
(mm)
8
(mm)
21.5
Amperage (A)
19
(V)
600
Watertight
No
No
No
No
