▶ Verona LED module
863571 - LCB-IBM-W-EWW
Package type: CT á 1 PCE
Product specifications : 863571 - LCB-IBM-W-EWW
Spot
Housing colour
White
Shape
Round
Adjustability
Rotating and swivelling
Operating current (mA)
0 - 350
Voltage type
DC
Lamp voltage (V)
8.8 - 8.8
Luminous flux (lm)
0 - 458
(lm)
0 - 458
Suitable for constant voltage
No
Suitable for constant current
Yes
External driver required
Yes
Colour temperature (K)
2700 - 2700
Number of LEDs
1
Colour
White
Connection type
Other
(cm)
50
Optics
Lens

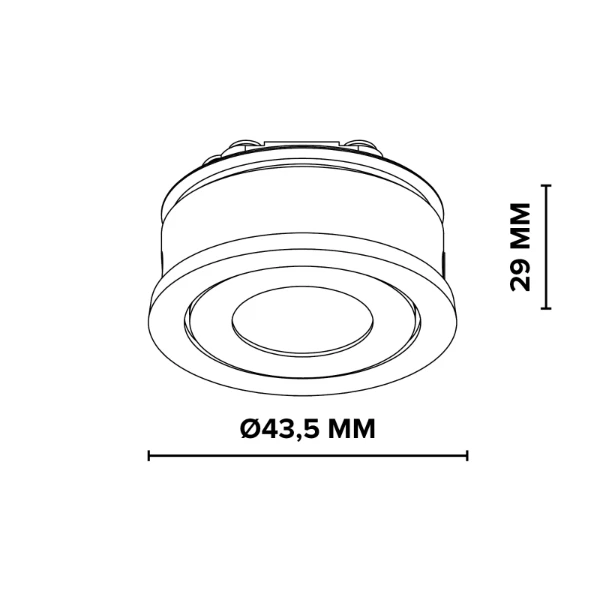

Diameter (mm)
43.5
Length (mm)
43.5
Width (mm)
43.5
Height (mm)
29
Built-in diameter (mm)
43.5
Degree of protection (IP)
IP44
Energy efficiency class according to EU regulation 2019/2015
C
Beam angle (°)
40 - 40
Lamp power (W)
3.1 - 3.1
Dimmable
Yes
Average nominal lifespan (h)
50000
Colour of light according to EN 12464-1
Warm white <3300 K
Colour rendering index CRI
80-89
Colour consistency (McAdam ellipse)
SDCM1
Specific luminous efficacy (lm/W)
0 - 148
Operating voltage (V)
8.8 - 8.8
IFTTT support available
No
Suitable for matrix information boards
No
Suitable for traffic lights
No
Suitable for rail traffic
No
Suitable for general lighting
Yes
Suitable for variable road signs
No
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Accessories
Variants
863572 - LCB-IBM-W-NW
White0 - 350
8.8 - 8.8
0 - 320
0 - 320
4000 - 4000
50
Reflector
25
IP20
E
40 - 40
3.1 - 3.1
Neutral white 3300-5300 K
0 - 103
8.8 - 8.8
E
863573 - LCB-IBM-W-WW
White0 - 350
8.8 - 8.8
0 - 320
0 - 320
3000 - 3000
50
Reflector
25
IP20
E
40 - 40
3.1 - 3.1
Warm white <3300 K
0 - 103
8.8 - 8.8
E
863574 - LCB-IBM-W-DTW
White0 - 500
5.6 - 5.6
0 - 219
0 - 219
2200 - 3000
100
Reflector
25
IP44
G
45 - 45
3 - 3
Warm white <3300 K
0 - 73
5.6 - 5.6
G
