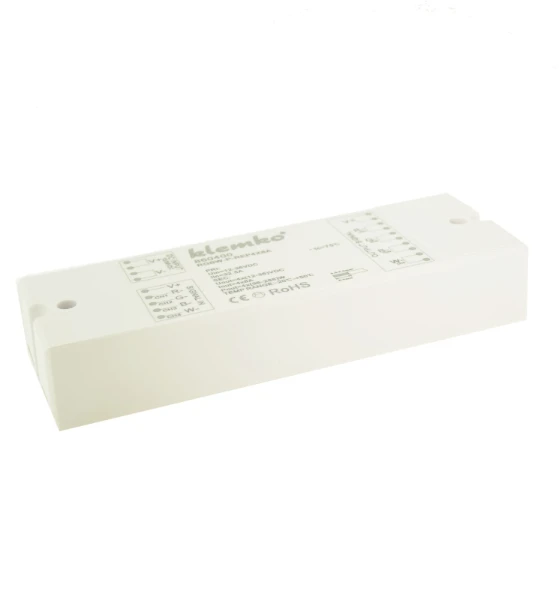

▶ LED driver
860400 - RGBW-P-REP4X8A
Package type: CT á 1 PCE
Product specifications : 860400 - RGBW-P-REP4X8A
Model
Static
Output power (W)
1 - 288
Housing
Plastic housing
Suitable for constant voltage
Yes
12 - 36
Rated voltage (V)
12 - 36
Voltage type
DC
Suitable for DC-voltage (primary side)
Yes
Suitable for constant current
No
Degree of protection (IP)
IP20
Suitable for outdoor use
No
Length (mm)
168
Width (mm)
58
Height (mm)
28
Rated frequency (Hz)
50 - 50
(°C)
-20 - +50
White
No
Number of channels
4
(W)
288
Yes
Yes
Yes
Operation by Bluetooth
No
Compatible with Casambi
No
Dimming potentiometer (integrated)
No
Dimming 1-10 V
No
Dimming phase cut-on
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming Zigbee
No
Dimming phase cut-off
No
Dimming 0-10 V
No
