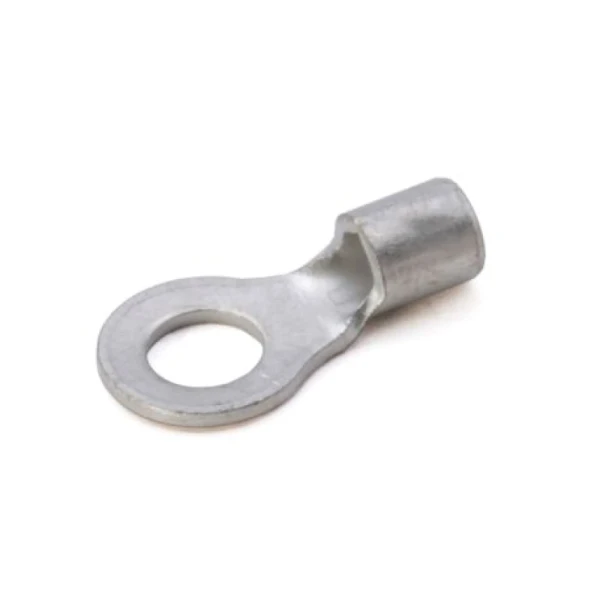

▶ Ring Terminal DIN 46234
250536 - 854-2-GATS
Package type: BX á 10 PCE
×
Product specifications : 250536 - 854-2-GATS
Nominal cross section (mm²)
185
Bolt dimension (metric)
8
Connecting angle
180° (horizontal)
Flange shape
Ring shape
Slender flange model
No
Insulated
No
With sight-hole
Yes
Conductor category
Several
Material
Copper
Surface protection
Tinned
Number of mounting holes
2
AWG size
350 kcmil
(mm)
21
(mm)
8.4
(mm)
38.5
(mm)
67.5
(mm)
3.5
(V)
600
(A)
505
