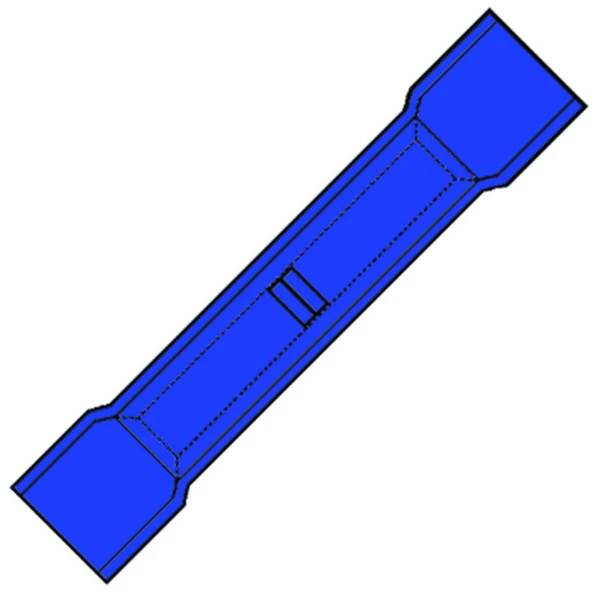

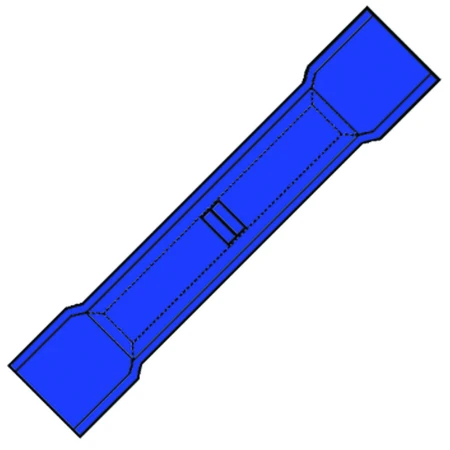

Crimp splices for copper conductor

151505 - SP2527-SKW-NY

Package type: BX á 100 PCE

151505 - SP2527-SKW-NY

Product specifications : 151505 - SP2527-SKW-NY

Nominal cross section (mm²)
1.04 - 2.63
Min. AWG-size
18
Max. AWG-size
14
Model
UL model
Sleeve form
Long
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
Polyamide (PA)
Colour insulation
Blue
Voltage level
Up to 600 V
Type of connection
Percussion connector
For pull protected connections
Yes
Oil stop/centre bar
No
Nominal current (A)
30
Yes
(mm)
27
(mm)
4.8
Yes
Yes
