Connection techn.

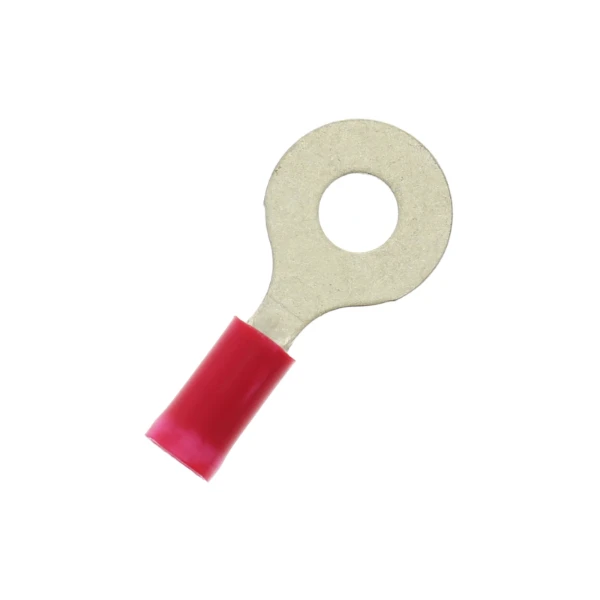

▶ Ring Terminal

101483 - SP 1553R/RW

Package type: BX á 100 PCE

101483 - SP 1553R/RW

Product specifications : 101483 - SP 1553R/RW

Bolt dimension (metric)
5
Flange shape
Ring shape
Insulation
Polyvinyl chloride (PVC)
Insulated
Yes
Colour insulation
Red
Nominal cross section (mm²)
0.34 - 1.65
Polyvinyl chloride (PVC)
Reel/roll packaging
No
Sleeve form
Short
Colour
Red
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
75
For pull protected connections
Yes
Material
Other
Surface protection
Tinned
Max. current (Imax) (A)
19
Stud size (imperial)
Other
Halogen free
No

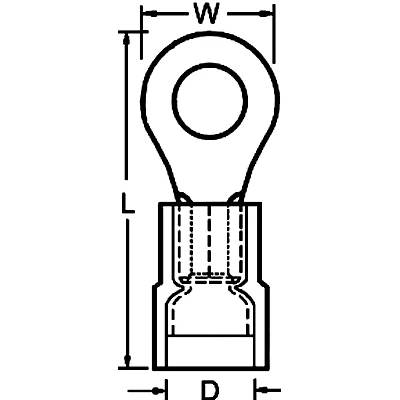

Total length (mm)
27
(mm)
3.6
(mm)
12.5
(mm)
27
Amperage (A)
19
(V)
600
Watertight
No
Temperature (°C)
75
Yes
No
No
Phosphor bronze

Variants

100140 - A 1510 R
10
Red
0.34 - 1.65
Red
105
19
31.6
3.4
13.6
31.6
19
No
100180 - A 1530 R *
3
Red
0.34 - 1.65
Red
75
19
17.8
3.4
5.7
17.8
19
No
100190 - A 1532 R
3.5
Red
0.34 - 1.65
Red
105
19
20.1
3.4
5.7
20.1
19
No
100270 - A 1543 R
4
Red
0.34 - 1.65
Red
105
19
21.5
3.4
8
21.5
19
No
100320 - A 1553 R
5
Red
0.34 - 1.65
Red
105
19
21.5
3.4
8
21.5
19
No
100350 - A 1565 R
6
Red
0.34 - 1.65
Red
105
19
27.5
3.4
11.6
27.5
19
No
100360 - A 1585 R
8
Red
0.34 - 1.65
Red
105
19
27.5
3.4
11.6
27.5
19
No
100510 - A 2510 R
10
Blue
1.04 - 2.63
Blue
105
30
30.2
5.1
13.6
30.2
27
Yes
100590 - A 2530 R
3
Blue
1.04 - 2.63
Blue
105
30
17.8
5.1
6.6
17.8
27
Yes
100610 - A 2532 R
3.5
Blue
1.04 - 2.63
Blue
105
30
21
5.1
6.6
21
27
Yes
