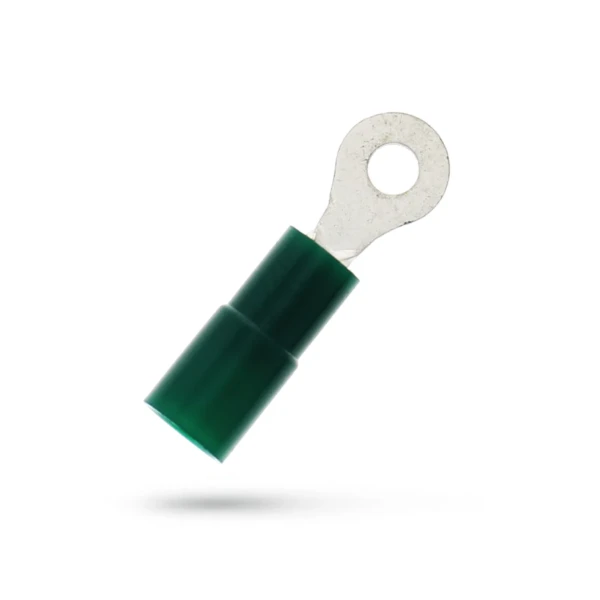

Ring Terminal

101370 - A 0523 R

Package type: BX á 100 PCE

101370 - A 0523 R

Product specifications : 101370 - A 0523 R

Bolt dimension (metric)
2
Flange shape
Ring shape
Insulation
Polyvinyl chloride (PVC)
Insulated
Yes
Colour insulation
Green
Nominal cross section (mm²)
0.1 - 0.5
Polyvinyl chloride (PVC)
Reel/roll packaging
No
Sleeve form
Short
Colour
Green
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
75
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
5
Stud size (imperial)
Other
Halogen free
No
Total length (mm)
12
(mm)
2.9
(mm)
5.2
(mm)
12
Amperage (A)
5
(V)
600
Watertight
No
Temperature (°C)
75
No
No
No
Yes

Variants

100140 - A 1510 R
10
Red
0.34 - 1.65
Red
105
19
31.6
3.4
13.6
31.6
19
No
100180 - A 1530 R *
3
Red
0.34 - 1.65
Red
75
19
17.8
3.4
5.7
17.8
19
No
100190 - A 1532 R
3.5
Red
0.34 - 1.65
Red
105
19
20.1
3.4
5.7
20.1
19
No
100270 - A 1543 R
4
Red
0.34 - 1.65
Red
105
19
21.5
3.4
8
21.5
19
No
100320 - A 1553 R
5
Red
0.34 - 1.65
Red
105
19
21.5
3.4
8
21.5
19
No
100350 - A 1565 R
6
Red
0.34 - 1.65
Red
105
19
27.5
3.4
11.6
27.5
19
No
100360 - A 1585 R
8
Red
0.34 - 1.65
Red
105
19
27.5
3.4
11.6
27.5
19
No
100510 - A 2510 R
10
Blue
1.04 - 2.63
Blue
105
30
30.2
5.1
13.6
30.2
27
100590 - A 2530 R
3
Blue
1.04 - 2.63
Blue
105
30
17.8
5.1
6.6
17.8
27
100610 - A 2532 R
3.5
Blue
1.04 - 2.63
Blue
105
30
21
5.1
6.6
21
27
