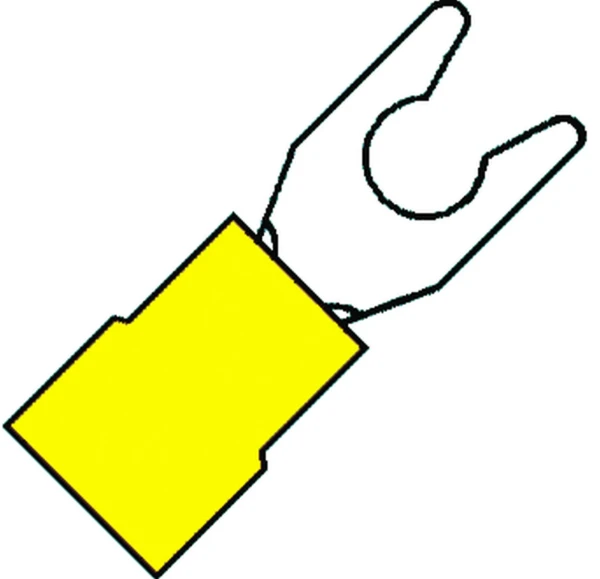

▶ Clamp Fork Terminal

101112 - A 4650 GS-L

Package type: BX á 100 PCE

101112 - A 4650 GS-L

Product specifications : 101112 - A 4650 GS-L

Bolt dimension (metric)
5
Flange shape
Fork shape
Insulation
Polyvinyl chloride (PVC)
Insulated
Yes
Colour insulation
Yellow
Nominal cross section (mm²)
2.63 - 6.64
Polyvinyl chloride (PVC)
Reel/roll packaging
No
Sleeve form
Short
Colour
Yellow
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Temperature protected till (°C)
75
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Max. current (Imax) (A)
50
Stud size (imperial)
Other
Halogen free
No
Total length (mm)
26.9
(mm)
5.6
(mm)
9
(mm)
26.9
Amperage (A)
48
(V)
600
Watertight
No
Temperature (°C)
75
No
No
No

Variants

100212 - A 1532 GS-L
3.5
Red
0.34 - 1.65
Red
75
19
21.2
3.4
6.4
21.2
19
100232 - A 1540 GS-L
4
Red
0.34 - 1.65
Red
75
19
21.2
3.4
7.2
21.2
19
100302 - A 1550 GS-L
5
Red
0.34 - 1.65
Red
105
19
21.2
3.4
8.1
21.2
19
100621 - A 2532 GS-L
3.5
Blue
1.04 - 2.63
Blue
75
30
21.2
4.1
6.4
21.2
27
100642 - A 2540 GS-L
4
Blue
1.04 - 2.63
Blue
75
30
21.2
4.1
7.2
21.2
27
100712 - A 2550 GS-L
5
Blue
1.04 - 2.63
Blue
75
30
21.2
4.1
8.1
21.2
27
101072 - A 4635 GS-L
3.5
Yellow
2.63 - 6.64
Yellow
75
50
25.2
5.6
7.2
25.2
48
101082 - A 4640 GS-L
4
Yellow
2.63 - 6.64
Yellow
105
50
25.2
5.6
8.3
25.2
48
101162 - A 4660 GS-L
6
Yellow
2.63 - 6.64
Yellow
75
50
31.2
5.6
12
31.2
48
